Woven Mesh Filter - Micron Aperture for Fine Filtration

Wire mesh filter is one of the most versatile media in the field of surface filtrations. The micron-leveled apertures are uniformly and precisely distributed, giving mesh filter greater accuracy, and can be used to filter the smallest particles in the world including a multitude of industries and applications like plastic & rubber reclamation.

Our metal woven cloth filter is woven by different weave types and materials to suit the market requirements. The common weave types include plain dutch & twill dutch. The former is designed for high flow and the latter for fine filtration. Apart from these two types, custom types are available such as reverse dutch weave & twill weave.

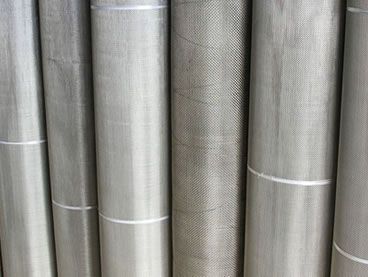

Stainless steel filter mesh is the most popular item for its good properties in resisting high temperatures, corrosions and deformation. Other materials are possible including galvanised steel, copper and other alloy steels.

Custom Wire Mesh Filter is supplied for your special requirements like special material, weave types, dimensions and shapes. Bespoke mesh filter is one of our advantages in servicing our clients. Just email us your inquiry, prompt reply will be received.

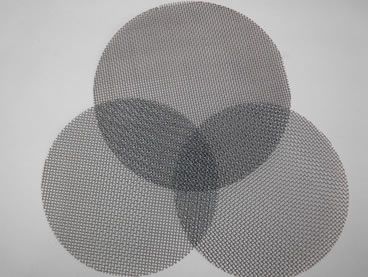

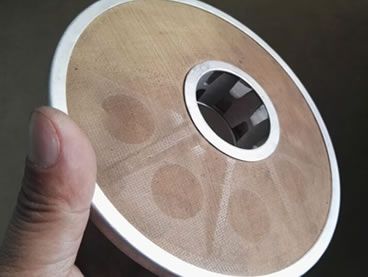

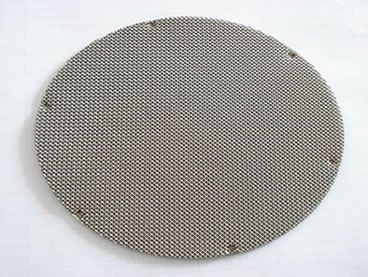

Multiple layers of woven wire mesh filter in disc shape with different micron apertures.

WWMF-1 Multiple layers metal cloth filter with cut edge

Product descriptions

Item: woven wire mesh filter.
Material: stainless steel 316, 304 and other alloy steels.
Weave Type: twill dutch, plain dutch.

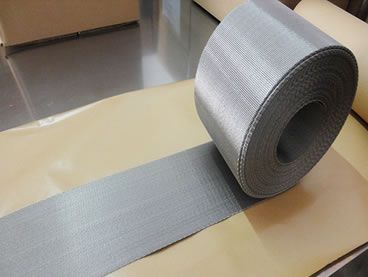

Wire Edge: woven edge (for wire cloth in rolls or disc without rims).

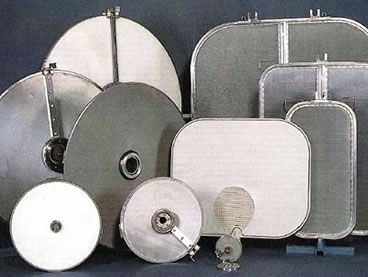

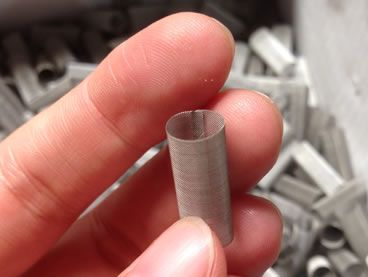

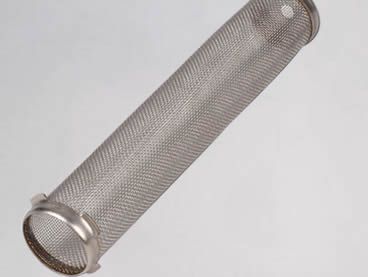

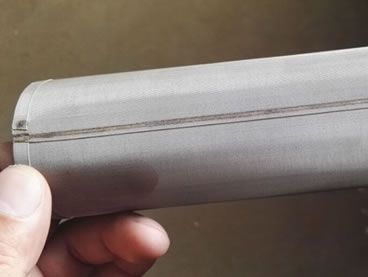

Elements: disc, circular ring, cylinder, basket, cone, oval, dome and bespoke shapes.

Features & benefits

Precise aperture for filtration.
Extremely high temperature.
Excellent corrosion resistance.
Washable, reusable & durable.
Any bespoke shape available.

Applications

Food & Beverage.
Printing.
Paper Making.
Petroleum & Chemical Industry.
Plastic & Rubber Reclamation.
Oil & Gas Filtration.
Hydraulic Filtration.

Frequent weave types for metal cloth filter

Plain dutch weave

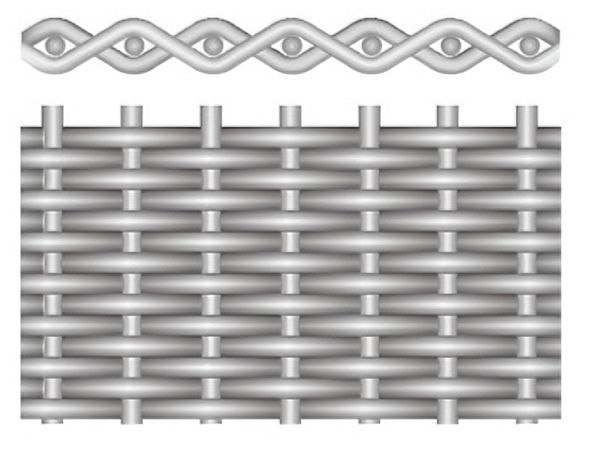

Plain dutch woven wire cloth is woven by smaller wire in micron size in the shute direction with the larger wire in the wrap direction. Smaller shute wires provide tight mesh for filtering while larger warp wires provide strength and keep the mesh's shape. This kind of woven wire cloth is used in separating and filtering liquid and slurry product.

Characteristics: high flow rate, high temperature and no pressure drop.

WWMF-2 Plain dutch woven wire cloth used for high-flow filtration

Twill dutch weave

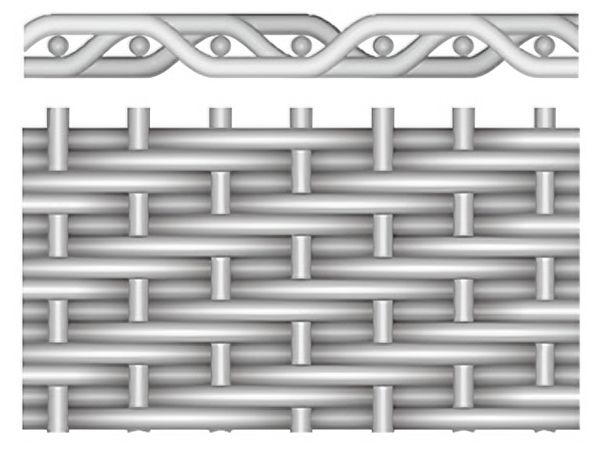

Twill dutch woven wire Cloth with shute wires passing over and under two warp wires for gas & liquid filtration applications. Micron size wire provides the smallest apertures for monofilaments of fine filtration like hydraulic oil.

Characteristics: ideal for filtration among pharmaceutical and chemical industries as well as diverse types of filter systems such as cartridge and pre-coat.

WWMF-3 Twill dutch woven wire mesh used for fine filtration

Table 1 Plain dutch woven wire mesh
Item	Mesh count per inch	Absolute micron retention	Weight (kg/m²)	Cloth thickness (mm)
WFP001	80 × 300	32-36	0.98	0.25
WFP002	80 × 400	36-45	0.82	0.23
WFP003	50 × 250	56-63	1	0.32
WFP004	50 × 280	71-75	1	0.32
WFP005	40 × 200	75-80	1.3	0.4
WFP006	30 × 150	80-100	1	0.5
WFP007	24 × 110	100-112	2.5	0.76
WFP008	22 × 140	140-170	2.1	0.66
WFP009	20 × 150	160-180	1.55	0.5
WFP010	20 × 150	170-190	1.6	0.55
WFP011	18 × 100	200-210	2.05	0.69
WFP012	14 × 110	220-240	2.15	0.72
WFP013	12 × 95	240-260	2.3	0.79
WFP014	14 × 88	280-300	3.15	0.76
WFP015	10 × 90	270-290	2.5	0.93
WFP016	12 × 64	280-300	4.1	1.21
WFP017	10 × 70	315-335	3	1.04
WFP018	8 × 85	330-350	2.5	0.93

Table 2 Twill dutch woven wire mesh
Item	Mesh count per inch	Absolute micron retention	Weight (kg/m²)	Cloth thickness (mm)
WFT001	510 × 3600	4-5	0.3	0.06
WFT002	400 × 2800	5-6	0.36	0.06
WFT003	375 × 2300	6-7	0.39	0.08
WFT004	325 × 2300	7-8	0.47	0.09
WFT005	260 × 1550	8-10	0.68	0.12
WFT006	250 × 1400	11-12	0.68	0.12
WFT007	200 × 1400	11- 13	0.75	0.14
WFT008	130 × 700	13-15	1.6	0.28
WFT009	200 × 1120	15-17	0.95	0.16
WFT010	165 × 1400	15-18	0.7	0.15
WFT011	165 × 1100	20-21	0.9	0.16
WFT012	80 × 700	34-36	1.2	0.26
WFT013	40 × 560	71-80	1.7	0.39
WFT014	30 × 360	95-106	2.6	0.54
WFT015	30 × 250	100-112	3.2	0.65
WFT016	20 × 260	110-120	3.1	0.67
WFT017	28 × 560	106-112	1.95	0.46
WFT018	24 × 300	112-118	2.85	0.63

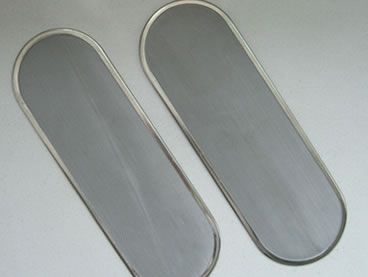

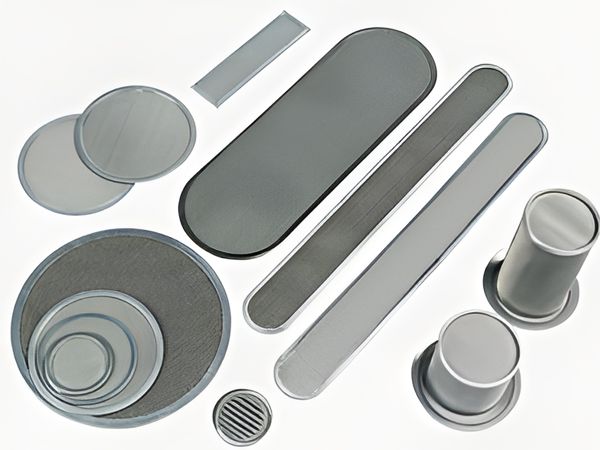

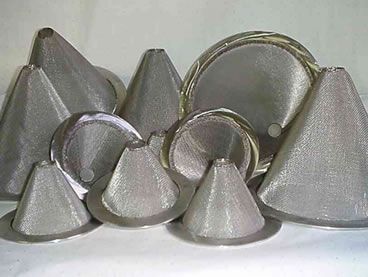

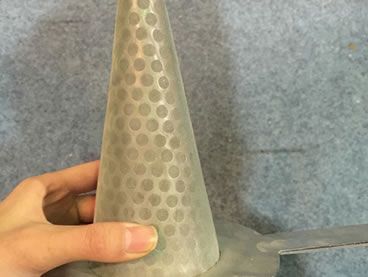

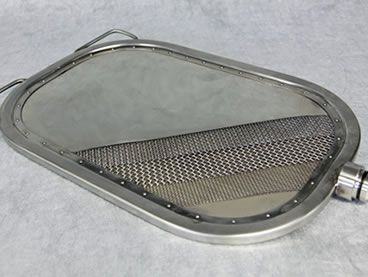

Wire mesh filters are available in diverse shapes to satisfy your unique applications. Disc, cone, cylinder and oval are common shapes. For special ones, bespoke service is welcome.
